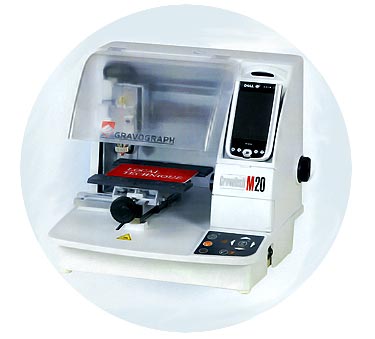

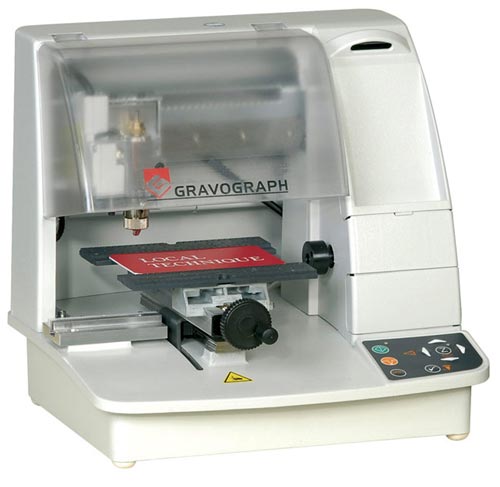

GRAVOTECH M20

• An affordable, self contained marking system that is convenient, easy to operate and can replace your manual machine or the need to outsource your marking issues.

IDEAL FOR:

1. WATCHES, BRACELETS, GIFT ITEMS.
2. ID-BADGES,SMALL SIGNS.
3. INDUSTRIAL TAGS.
4. IDENTIFICATION AND LEGEND

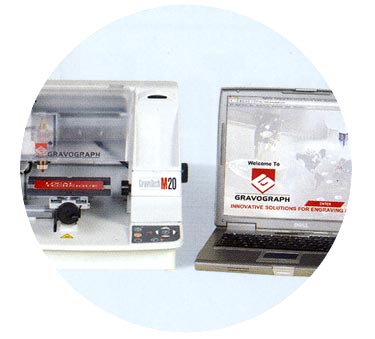

• Complete system includes engraving machine and software tools, accessories and tutorial.

• Choose from two user-friendly software programmes delivered standard that will enhance your creativity.

1. the KwikClick™  user friendly software- Easy yet professional.
2. the KwickPocket™  user friendly software, PDA based – no PC required to operate the machine.

• Easy clamping of plates and other objects with self-centering vice.

• Integrated vice and pen attachment provides quick change-over and increases productivity.

• Depth nose allows for constant engraving particularly on uneven surfaces.

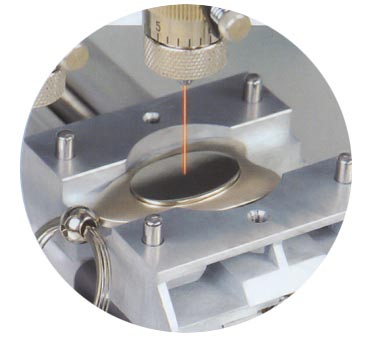

• Error-free engraving lets you simulate your job before you engrave using the integrated red laser pointer – no measuring required.

• Effortless Cutter Setup – Integrated Automatic Z reference function included standard.

• Overall machine size

1. 310 x 340 x 310 mm

• Weight

1. machine: 10 kg

• Engraving area

1. 100 x 100mm

• Z stroke

1. 30mm
2. Clearance  (nose to bottom of vice) : 40mm

• Spindle

1. Diameter 3,17mm hollow shaft (GravoGraph patented innovation)
2. Brushless motor 20000 rpm
3. Spindle pressure adjustment

• Point ‘n shoot function

1. Engraving area automatically defined by red laser beam pointer

• Self centering vice

1. Max opening capacity: 105mm

• Flatness: 0.1mm

• Repeatability: 0.05mm

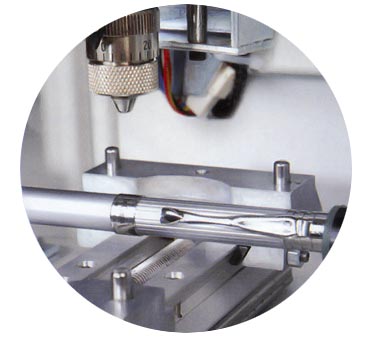

• Pen attachment

1. Maximum diameter: 20mm

• Noise level

• Stnadby: LAeq = 51 dB (A) (±1)
• Engraving: LAeq = 69 dB (A) (±2)
• Peak in engraving: LpCpeak = 89 dB (C)






Click Here to Download the Gravotech M20 Brochure.

Please note that the brochure is downloadable in .PDF format only. Click on the Adobe Acrobat Reader icon to download the necessary software.
