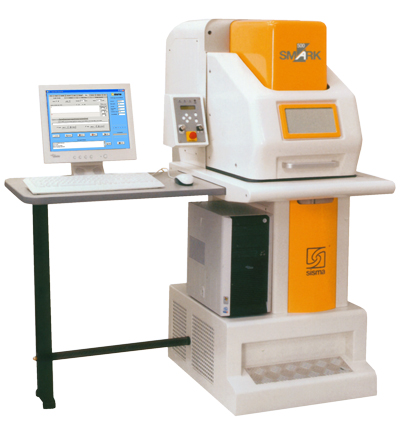

SMARK 500
The marking laser is made to draw writings or images in a indelible way by means of thermic ablation. Complete with PC where the specific software, for jewellery applications, allows to acquire and draw images or write texts. The versatility of Smark laser allows also the important “cutting” operations. The very small dimensions of the spot with constant output, allows quickly mark operations with a very high quality.
•Dual Mode System
•Programmable controlled Z axis
•Version with basement
|
| Output power |
50 W |
| Wave length |
1064 nm |
| Max marking speed |
5000 mm/s |
| Position resolution |
1,7 µm |
| Fume suction |
60 mm |
| Power supply |
220V 50/60 Hz 1ph |
| Absorbed power |
2300 VA |
| Dimensions |
140x100x140h cms |
| Weight |
260 kg |
| FOCAL 100 |
|
| Marking area |
65 x 65 mm |
| Spot diam. |
25 µm |
| FOCAL 160 |
|
| Marking area |
110 x 110 mm |
| Spot diam. |
25 µm |
| FOCAL 254 |
|
| Marking area |
180 x 180 mm |
| Spot diam. |
55 µm |
|
|
|
|
